CLUTCH SPREADER BELT REMOVAL BOLT SET – 2026 KAWASAKI TERYX H2 MODELS

Compatible with: KAWASAKI STOCK SECONDARY CLUTCH -

✅ 2025, 2026 - Teryx4 H2

✅ 2025, 2026 - Teryx4 H2 DELUXE eS

✅ 2025, 2026 - Teryx5 H2 DELUXE eS

DESCRIPTION:

Never get stranded again. This BLR TUNING Clutch Spreader Bolt Set is a must-have trail tool for every 2025 - 2026 Kawasaki TERYX H2 owner. Whether you’re deep in the dunes, on a trail, or just far from the shop, these bolts allow you to remove and replace your CVT belt in about 15–20 minutes with nothing more than basic hand tools.

This set includes three (3) high-strength Grade 10.9 galvanized steel bolts designed specifically to spread the secondary clutch evenly for safe and simple belt removal. These are the exact bolts we use in-house at BLR TUNING on our own H2 “BOOGIE MAN,” so you know they’re tested, proven, and reliable under real-world conditions.

KIT INCLUDES:

(3) Heavy-Duty Galvanized Steel Grade 10.9 Clutch Spreader Bolts

Designed to perfectly fit the 2025 - 2026 Kawasaki TERYX H2, TERYX4 H2, and TERYX5 H2 models

Packaged and inspected by BLR TUNING

RECOMMENDED TOOLS:

To perform a full belt change out on the trail, you’ll need:

14mm socket (for the clutch spreader bolts)

10mm socket (for clutch cover bolts)

Replacement CVT belt

Scotch-Brite pad, acetone, and brake clean for cleaning clutch sheaves

HERE IS A LINK TO OUR INSTALL VIDEO ON YOUTUBE: CLICK HERE

INSTALLATION OVERVIEW:

1. Remove the clutch cover – 10 bolts (10mm). Don’t forget the rear heat shield secured by three bolts protecting the cover from exhaust heat.

2. Engage the e-brake and put the car in high gear (engine off).

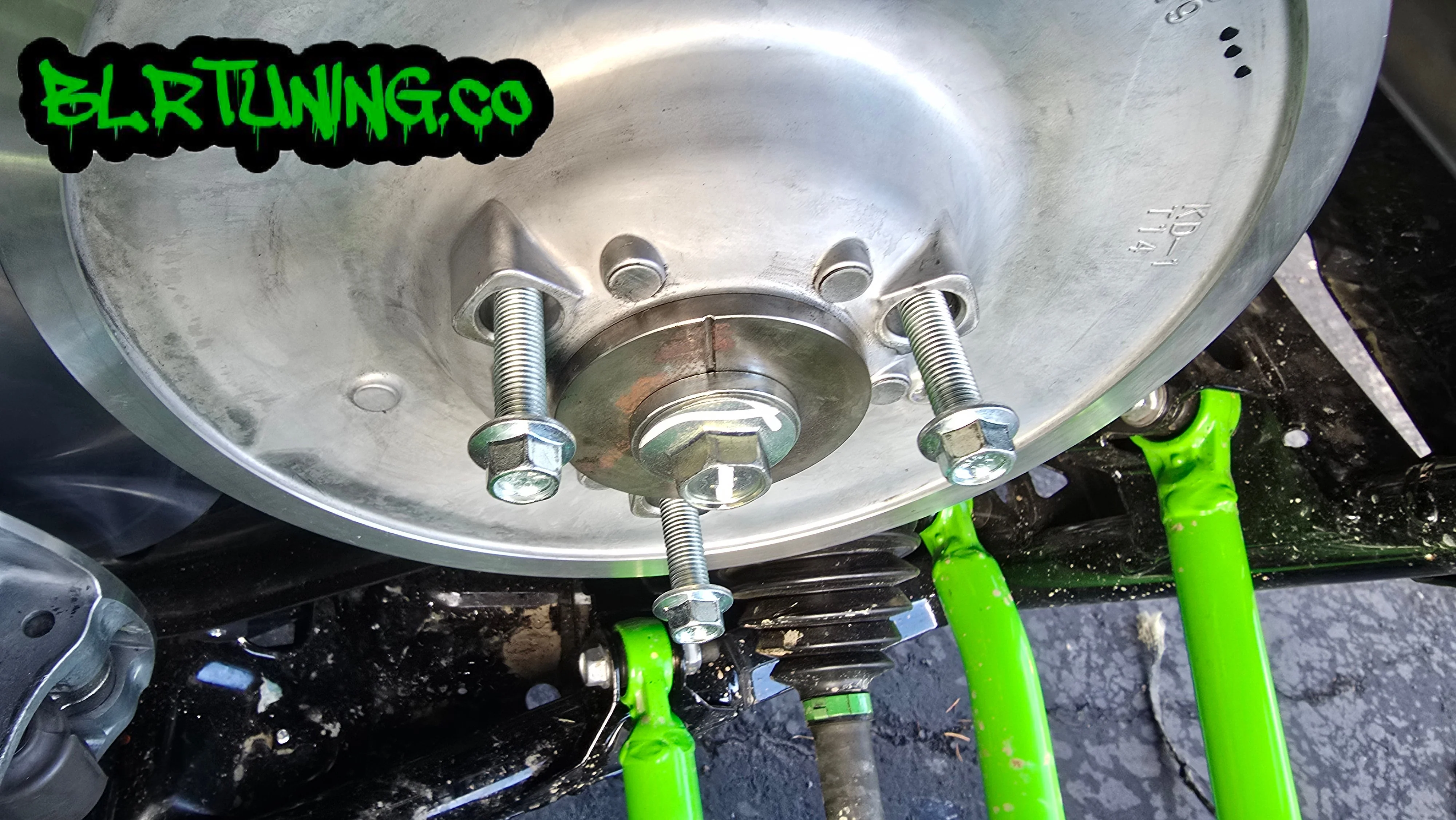

3. Insert the three BLR TUNING clutch spreader bolts evenly into the threaded holes of the secondary clutch. Thread them in by hand using an 14mm socket — do not use a power tool or impact.

4. Turn each bolt a few turns at a time, keeping even pressure on all three until the clutch sheaves open enough for the belt to loosen.

5. Remove the old belt: walk it up and over the rear pulley, sliding it off toward the front of the car.

6. Clean both clutch sheaves thoroughly before installing a new belt.

7. Install the new belt:

Drop it over the primary clutch (front of vehicle).

Set it on top of the secondary clutch (rear).

Shift to neutral, keeping the e-brake engaged.

Spin the rear pulley backwards (top turning toward the rear) to walk the belt into place.

8. Slowly remove the spreader bolts a little at a time, continuing to walk the clutch forward until the belt begins to seat properly.

9. Once fully seated, reinstall the clutch cover and heat shield using all 10 bolts

BELT BREAK-IN PROCEDURE:

Your belt’s life depends on proper break-in. Skip this, and you’ll likely snap it just like we did with our shop H2 “BOOGIE MAN.”

1. After installing a new belt, drive gently at low speeds (under 25 mph) for 15–20 minutes.
2. Let the vehicle cool down completely for 30 minutes.
3. Repeat the heat cycle one more time.
4. Avoid full or half throttle during this process. The goal is to get heat evenly into the belt before applying heavy load.
5. After two full heat cycles, the belt is considered broken in and ready to ride.

TRAIL READY CHECKLIST

✔ Always carry a spare CVT belt

✔ Keep this BLR TUNING Clutch Spreader Bolt Set in your tool bag

✔ Bring a 14mm and 10mm socket

✔ Stay prepared — don’t get stranded out in the dunes, trails, or backroads

FEATURES:

Exact Fitment: Precision-threaded to match the 2025 - 2026 Kawasaki TERYX H2 clutch system
Heavy-Duty Construction: Grade 10.9 galvanized steel resists corrosion and high torque loads
Compact Trail Kit: Small enough to fit in a glove box or tool roll
BLR TUNING Tested: Used in real-world belt change scenarios on high-horsepower TERYX H2 machines

SPECIFICATIONS:

Thread Type: Metric fine thread (compatible with OEM secondary clutch)
Material: Grade 10.9 Steel
Finish: Zinc-Galvanized Anti-Corrosion Coating
Socket Size: 14mm
Quantity: Set of 3

BLR TUNING NOTES:

We designed this kit because we learned the hard way — blowing a belt miles from camp without the proper tools is no fun. Don’t rely on luck; rely on preparation. BLR TUNING’s clutch spreader bolts are compact, tough, and built for real-world reliability.

SHIPPING & DETAILS

In Stock & Ready to Ship from BLR TUNING, Vancouver, WA
Shipping included in price
No additional shipping fees at checkout

NOTE: OUR SPREADER BOLTS MAY APPEAR SILVER OR BRONZE IN COLOR - THIS IS DUE TO THE SPECIAL COATING ON THEM - REGARDLESS OF COLOR THEY ARE THE CORRECT 10.9 GRADE BOLTS (COLOR MAY VARY)
